1. Welding the steel sprocket to the steel tube gives it the capacity to transmit high torque and meet the requirements for heavy duty transportation.
2. The precision ball bearing is pressed tightly into the steel bearing housing for maximum durability.
3. The environmental working conditions are broad. They can be used in both high and low temperature applications.
4. The covering on the outside of the sprocket protects the bearings by providing excellent resistance to dust and splashed water.
5. Temperature range:-5℃ ~ +40℃,Remove the end cap (green) and
retaining ring (black), the temperature can reach -30℃ ~ +80℃.

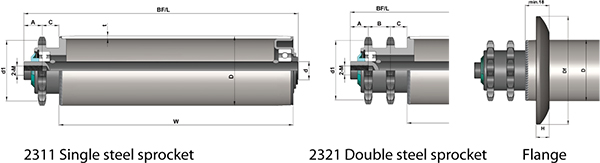

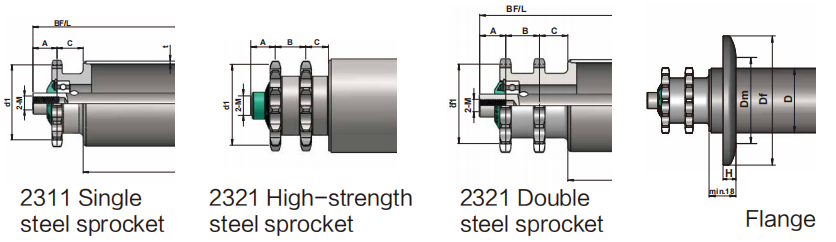

D | T | Shaft | Sprocket | A | B | C | Tube |
Steel Z/P | SS |
Φ50 | 1.5 | Φ12 | 08B11T | 17 | 22 | 18.5 | √ | √ |
Φ50 | 2.0 | Φ12 | 08B11T | 17 | 22 | 18.5 | √ |
|
Φ60 | 2.0 | Φ12/15 | 08B14T | 17 | 22 | 18.5 | √ | √ |
Φ60 | 3.0 | Φ15 | 08B14T | 17 | 22 | 18.5 | √ |
|
Φ76 | 3.0 | Φ15 | 08B14T | 17 | 22 | 18.5 | √ | √ |
Φ76 | 3.0 | Φ20 | 10A13T | 20 | 25 | 18.5 | √ | √ |
Φ76 | 4.0 | Φ20 | 10A13T | 20 | 25 | 18.5 | √ |
|
Φ80 | 3.0 | Φ20 | 10B15T | 20 | 25 | 18.5 | √ |
|
Φ89 | 3.0 | Φ20 | 10B15T | 20 | 25 | 18.5 | √ |
|
Φ89 | 4.0 | Φ20 | 10B15T | 20 | 25 | 18.5 | √ |
|
Type
| D
| Df
| H
| Tube |
| Steel Z/P | SS |
welding
| Φ60 | Φ120 | 12 | √ | √ |
| Φ76 | Φ135 | 16.5 | √ | √ |
| Φ80 | Φ150 | 18 | √ |
|
| Φ89 | Φ150 | 18 | √ |
|
O——Available configuration
Φ50、60mm rollers can be fitted with PVC sleeve (2mm).
If steel pallets are transported, the risk of wear on roller surface is higher, please contact us in advance.
