description:


1.It is widely used and the most popular product in the gravity roller

series. It is commonly used in carton conveying applications.

2.The bearing end cap consists of a precision ball bearing, a polymer

housing and end cap seal. Combined they provide an attractive,

smooth and quite running roller.

3.The design of the end cap protects the bearings by providing excellent

resistance to dust and splashed water.

4.Can be configured with different bearings according to the application.

Meets the requirements for light gravity chutes.

5.Suitable for the high speed applications. Maximum speed varies with

roller length and diameter. Maximum speed up to 120m/min.

6.Anti-static configuration available.

7.Temperature range: -5℃ ~ +40℃.

   Humidity available ≥ 30%

   Please contact us if humidity out of this scope.

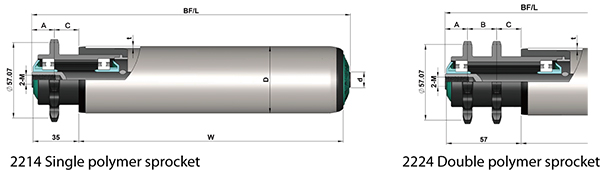

D

T

Shaft

Sprocket

A

B

C

    d1

Tube

Steel Z/P

SS

Aluminium

PVC

Φ50

1.5

Φ12/15

08B14T

17

22

18.5

Φ57.07


Φ50

2.5

Φ12/15

08B14T

17

22

18.5

Φ57.07


Φ60

2.0

Φ12/15

08B14T

17

22

18.5

Φ57.07



Marks:Φ50、60mm rollers can be fitted with PVC sleeve (2mm).
