1.Compared with chain drive, the O-belt drive has the advantages of low noise and high speed. It is widely used for light/medium duty carton conveying.
2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
3.The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
4.The position of the grooves can be customized.
5.Standard configuration with anti-static design surface impedance≤106 Ω。
6.Temperature range: -5℃ ~ +40℃.
7.Humidity range: 30%~ 90% RH (non-condensation). Please contact us if humidity out of this scope.

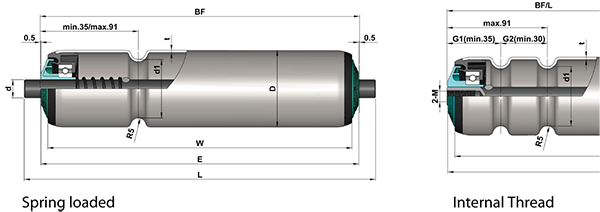

Spring loaded
Internal Thread Polymer noiseless sleeve for shaft
D | T | Shaft | Tube |
Steel Z/P | SS |
Φ40 | 1.5 | 11hex,Φ8/10/12 | √ | √ |
Φ50 | 1.5 | 11hex,Φ8/10/12/15 | √ | √ |
Φ60 | 2.0 | 11hex,Φ10/12/15 | √ | √
|
Remark: Φ50 rollers can be fitted with PU sleeve (2mm).
Φ50、60 rollers can be fitted with PVC sleeve (2mm).
11hex can provide tapered plastic steel shaft sleeve roller.
Polymer noiseless sleeve for shaft roller：
① Actual frame width= E+（1~3）mm，Excessive width inside the frame will damage the shaft core and roller
② Applicable mounting hole range：11.2~11.7mm（edge to edge）
