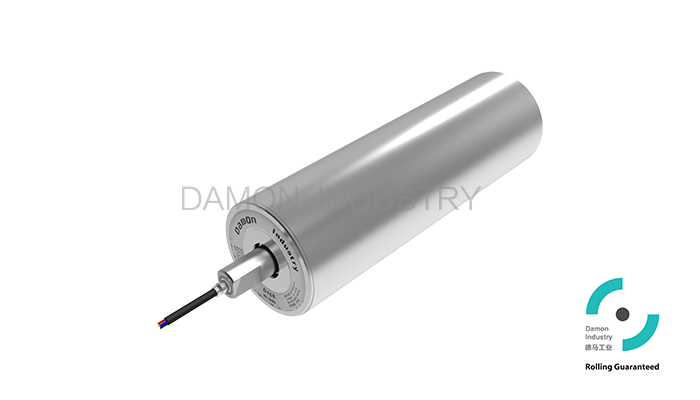

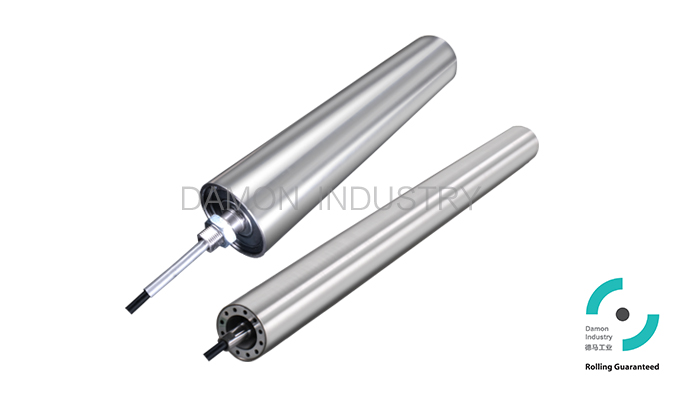

Drum Motor(light duty)
1.Space-saving and easy installation
2.Frequent starts and stops, up to 2000 cycles per hour
3.Up to 95% efficiency, save energy consumption
4.Cooling oiless design, no risk of oil leakage
5.Direct drive motor technology, high dynamic response, high precision positioning
description:

Belt Conveyor Pulley Products Overview 202106V2(9)-05.jpg

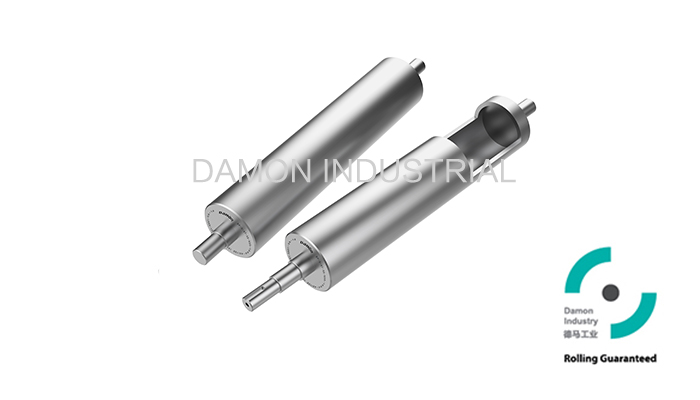

①  Driven Pulley:

Main driving component for centre drive belt conveyors:

Select BP-D series pulley (rotating shaft).



②  Head & Tail Pulley:

Installed at each end of a belt conveyor according to the different drive type and structure:

a、Centre drive:

Change the belt direction: Select BP-R series pulley (fixed shaft) or DP-D series pulley

(rotating shaft)

b、Head or Tail drive:

Drive Pulley: Select BP-D series pulley (rotating shaft)

Idler Pulley: Select BP-R series pulley (fixed shaft) or BP-D series pulley (rotating shaft).



③  Snub Pulley:

Used to increase the belt wrap angle for the driven pulley, tension and tracking the belt.

Select BP-R series pulley (fixed shaft) or 1200 series conveyor roller.

Be careful about the belt tensionning and siding focce when using as redirection & tensioning.



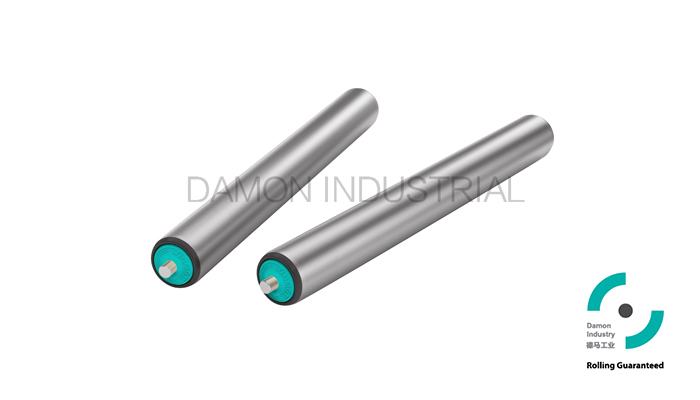

④  Carrying Roller:

Used to support the belt, simplify structure and reduce friction:

Select 1200 series conveyor roller.

 Basic Parameters

Roller Model DMR67 DMR100
Tube Dia. 67mm 100mm
Rated Power 0.4kW 0.75kW 1.1kW
Rated Torque 4N·m 10N·m 15N·m
Rated Voltage AC 1X220V±10%/ 50Hz
Length Range 300-1000mm 400-1400mm 500-1400mm
Speed Range
30~150m/min
Working Method Start-stop frequency ≤2000 cycles per hour,continuous running

Drum motor roller must be used with a driver and cannot be directly connected to the AC power supply.

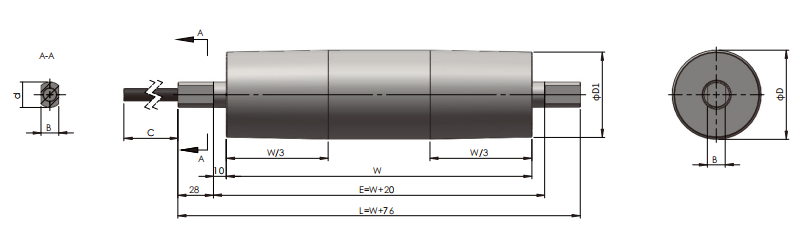

Dimensions



Model Tube Dia.(D) Drum Shape(D1) Shaft Dia.(d) Milled Flat Cable Length(C)
DMR 67 70mm 67mm 20mm width(B) 1000mm
DMR100 103mm 100mm 30mm 14~17mm 800mm


•Rapid response,precise position control

•Supports RS485,CANOPEN and EtherCAT bus protocols

•Adjustable parameter panel for real-time  monitoring of Roller running status

•Meets long-distance roller cable



Drive Technical Data



Rated Voltage AC 1X220V(±10%)
Rated Power 0.4kW / 0.75kW / 1.1kW
Start-stop Frequency ≤ 2000 cycles per hour
Control Mode I/O & Bus
Bus Communication RS485 / CANopen / EtherCAT
Maximum Extention Cable 15m
