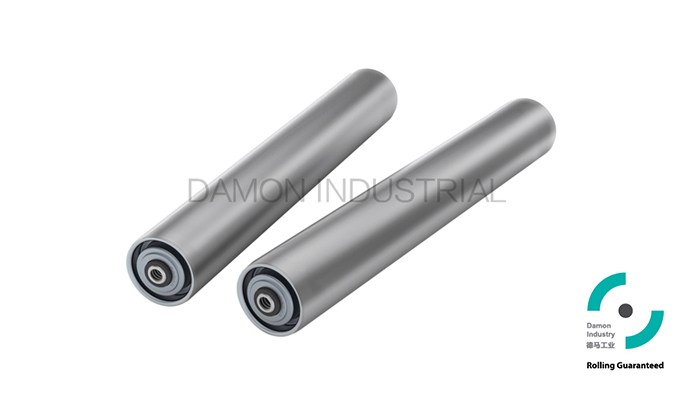

1.It is widely used and the most popular product in the gravity roller series. It is commonly used in carton conveying applications.
2.The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal.
Combined they provide an attractive, smooth and quite running roller.
3.The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
4.Can be configured with different bearings according to the application. Meets the requirements for light gravity chutes.
5.Suitable for the high speed applications. Maximum speed varies with roller length and diameter. Maximum speed up to 2~3m/s.
6.Standard configuration with anti-static design surface impedance ≤106 Ω.
7.Temperature range: - 5℃ ~ + 40℃
8.Humidity range: 30%~ 90% RH (non-condensation).
Please contact us if humidity out of this scope
D | T | Shaft | Tube |
Steel Z/P | SS | Aluminium | PVC |
| Φ40 | 1.5 | 11hex,Φ8/10/12 | √ | √ |
|
|
Φ50 | 1.5 | 11hex,Φ8/10/12/15/17 | √ | √ | √ |
|
Φ50 | 2.0 | 11hex,Φ8/10/12/15 | √ |
|
|
|
Φ50 | 2.5 | 11hex,Φ8/10/12/15 |
|
|
| √ |
Φ60 | 2.0 | 11hex,Φ10/12/15 | √ | √ | √ |
|
Φ60 | 3.0 | Φ17 | √ |
|
|
|
| Φ80 | 3.0 | Φ20 | √ |
|
|
|
Remark: Φ50 rollers can be fitted with PU sleeve (2mm).
Φ50、60 rollers can be fitted with PVC sleeve (2mm).
11hex can provide tapered plastic steel shaft sleeve roller.
Polymer noiseless sleeve for shaft roller：
①Actual frame width= E+（1~3）mm，Excessive width inside the frame will damage the shaft core and roller
②Applicable mounting hole range：11.2~11.7mm（edge to edge）
