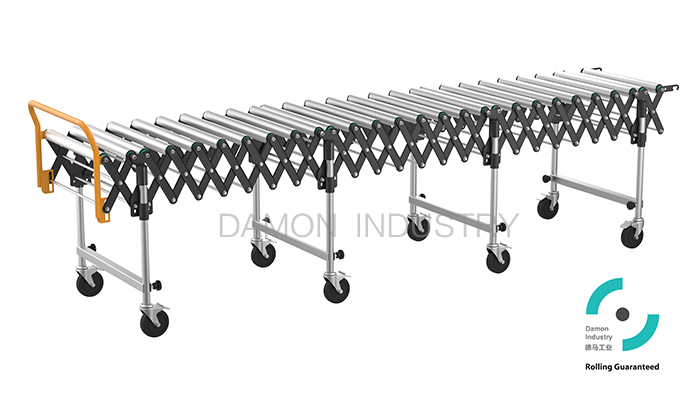

Non-Driven roller expandable conveyor

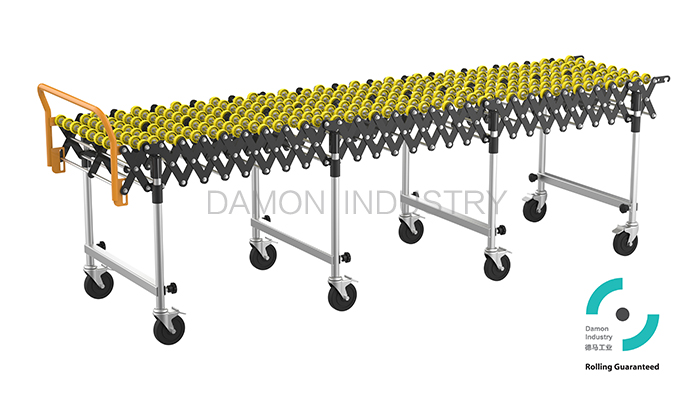

Non-driven Skate Wheel Expandable Conveyor

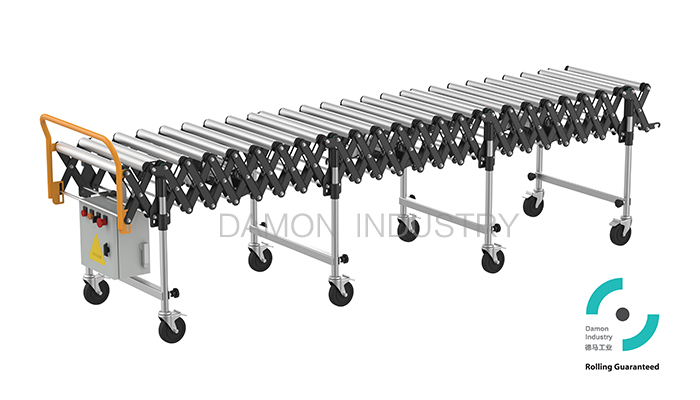

Motorized Roller Expandable Conveyor
Non-Driven roller expandable conveyor
high weight burden
smooth and quiet running
suitable for middle or big items
description：




Specifications

Φ38 single roller expandable conveyor

Model

Unit

Length mm

Width mm

Height mm



Load/Unit kg

(no shock load)

FWA-38

2

980-2480



500

600



700~1000

550~700

80

FWA-38

3

1350-3510

FWA-38

4

1720-4540

FWA-38

5

2090-5570

FWA-38

6

2460-6600
When conveyor is expanded into its Max length, the roller shaft pitch as 120mm.



Φ50 single roller expandable conveyor



Model

Unit

Length mm

Width mm

Height mm



Load/Unit kg

(no shock load)

FWAH-50

2

1120-2700



600

750

900



700~1000

550~700

100

FWAH-50

3

1540-3800

FWAH-50

4

1960-4900

FWAH-50

5

2380-6000

FWAH-50

6

2800-7100

When conveyor is expanded into its Max length, the roller shaft pitch as 120mm.

Roller


● Design of polymer bearing housing and end cap

● Beautiful, quiet operation

Tube Dia.(D) t Shaft Dia.(d) Tube Material
Zinc plated stee Stainless steel
Φ38 1.2 Φ12 √ ○
Φ50 1.5 Φ12 √ ○
