description:

1. With typical friction driven accumulation, the accumulation force is associated to load capacity.

2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal.

 Combined they provide an attractive, smooth and quite running roller.

3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.

4. Utilizes durable, steel sprockets.

5.Standard configuration with anti-static design surface impedance≤106Ω。

6.Temperature range: -5℃ ~ +40 ℃.

7.Humidity range: 30%~ 90% RH (non-condensation).

Please contact us if humidity out of this scope.

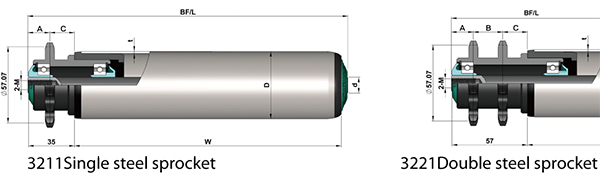

D

T

Shaft

Sprocket

A

B

C

Tube

Steel Z/P

SS

Φ50

1.5

Φ12/15

08B14T

17

22

18.5

Φ60

2.0

Φ12/15

08B14T

17

22

18.5
